16CH Power & HD Video UTP Transceiver Kit

List Price: $500.00

Our Price: $375.00

You save $125.00!

Availability: Usually Ships in 24 Hours
Product Code: AAS-VPHP15-16K

Overview

Specifications

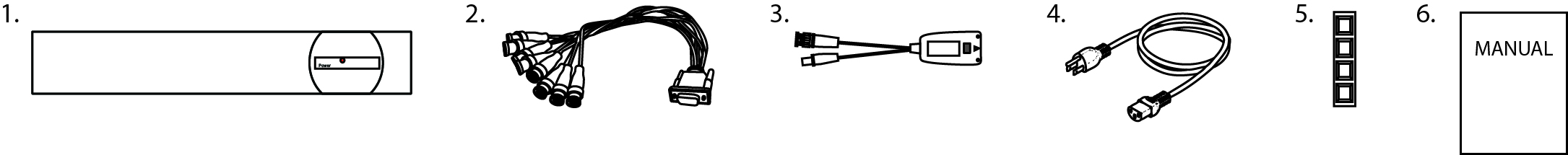

What's in the Box / Warranty

User Manual | View More Info with Application Diagram

16CH Power & HD Video UTP Transceiver
Model		AAS-VPHP15-16K
Transmission & Video Properties	Channel	16 Channels
	Video Output	2x DB15 (DB15 to BNC-M, 30cm Pigtail Cable include)
	Video In / Power Output	16x RJ45
	Transmission Distance	Refer to 'Table-1' and 'Table-2' below
	Power Output	12~15V DC Total <100W (each port <12W)
	Compatible Video Format	HD TVI, HD CVI, AHD / PAL, NTSC, SECAM
	Signal Transmission Band	0~70MHz
	Anti-Interference	>60dB
Protection	Coaxial Video Connector Surge	2KV per：IEC61000-4-5
	UTP Cable Communication Connector Surge Protection	2KV (different mode) ; 4KV (common mode) per:IEC61000-4-5
	ESD	Contact Discharge: 6000V ; Air Discharge: 8000V Per: IEC61000-4-2 1995
Environmental	Operation Temperature	-10°C~50°C / -14°F~122°F
	Storage Temperature	-40°C~85°C / -40°F~185°F
	Relative Humidity	0~95% (non-condensing)
Physical Properties	Color	Black
	Material	Iron Metal and Plastic
	Dimension	310 x 232 x 45 mm / 12.2 x 9.1 x 1.78 inches
	Net Weight	1.76 kg / 3.88 lbs

1CH Power & HD Video UTP Receiver
Model		AAS-VPH-100T
Function	Channels	1CH
Function	Transmission Distance	HD TVI: 720p: 170m / 1080p: 150m HD CVI: 720p: 370m / 1080p: 100m AHD: 720p/960p: 330m / 1080p: 300m CVBS: 500m
Video & Connector Properties	Video Connector	BNC-M
	UTP Connector	Screw Terminal
	Compatibility	HD TVI, HD CVI, AHD, CVBS Video
	Signal Transmitting Band	0~70MHz
WIre Type	Network Wiring	UTP Cable 24-16 AWG (0.5-1.31mm)
	Category Type	CAT5e/6 Suggested
	Impedance	100 + 20 Ω
	DC Loop Restances	52 Ω / 1000ft (18 Ω / 100m)
	Differential Capacitance	19 pF/ft max (62pF/m max)
Protection	ESD	Contact Discharge: 6KV Air Discharge: 8KV per: IEC61000-4-2
Protection	Surge	2KV (differential-mode), 4KV (common-mode) per: IEC61000-4-5
Environmental	Operation Temperature	-10°C~55°C / -14°F~131°F
	Storage Temperature	-40°C~85°C / -40°F~185°F
	Relative Humidity	0~95% (non-condensing)
Physical Properties	Color	Black
Physical Properties	Material	ABS Engineering Plastic

*Specifications are subject to change without notice

Table-1**:

Voltage Drop According to Transmission Distance
Transmissino Distance (L)	Transmission Voltage (Output 12V DC /0.3A)	Transmission Voltage (Output 12V DC/0.5A)	Transmission Voltage (Output 12V DC/1A)
50m	13V	13.7V	15.5V
100m	14V	15.5V	18.7V
150m	15V	17V	22V
200m	16V	16.7V	25.5V
250m	17V	20.5V	28.7V
300m	18V	22V	32V

Table-2**:

Single Source	HD TVI (720P/1080P)	HD CVI (720P)	HD CVI (1080P)	AHD-L/M (720P/960P)	AHD-H (1080P)	Analog Video
Recommended Distance	150m / 380ft	200m / 500ft	100m / 250ft	300m / 950ft	150m / 380ft	300m / 950ft

**The test data in Table 1 and Table 2 are required under lab environment. In actual case, there may be some differences due to different cable and environment.

AH-13K

FCC Certified

Features

Transfer real-time video and power through one Cat5/5e/6 cable
HD TVI/HD CVI/AHD/CVBS 4 in 1 compatible design
High quality and high capacity AC-DC power supply, providing up to 12W 15V DC for each channel
Over-current/Short circuit/over-temperature protection and over-current abnormal LED indication
Excellent ESD protection
DB15 to BNC composition extender kits, easy for engineering installation
