8-CH Video, Audio, Power, Data Balun Kit: 8-CH Transceiver Hub with 8pcs Transceiver Device – Camera Side
8-CH Video, Audio, Power, Data Balun Kit



List Price: $731.00
Our Price: $548.25
You save $182.75!


Availability: Usually Ships in 24 Hours
Product Code: UTP-VBDP24AC-8-120K

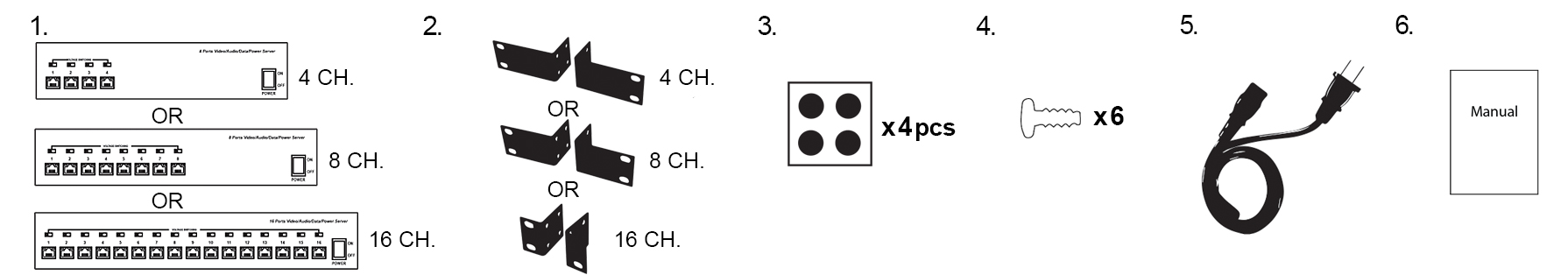

Overview Specifications What's in the Box / Warranty



The 4 / 8 / 16 channel transceiver hubs allow transmission of CCTV video, audio, AC power, and data over single network cable at the same time. These devices use single CAT5 / 5e / 6 UTP cable as transmission medium and work together with the camera side transceiver device, VBDP-C. The transceiver hub devices are capable of transmitting 4x / 8x / 16x channels of PAL, NTSC, SECAM color or monochrome video signals, mono monitor audio, RS-485 or RS-232 signals up to 300m / 1000ft, and provide 12V DC or 24V AC power to each camera.
Features
    UTP-VBDP24AC-8-120:
    • Using 150W / 300W / 600W AC Power, each Channel are independently chosen with output power 24V / 28V AC
    • Transmit 8x channels video, audio, 24V / 28V AC power, and data over one UTP cable
    • Anti-interference, Surge Protection, Anti-static Protection, Transient Shock Protection
    • Hard Anti-rust Iron Shell

    UTP-VBDP-C:

    • Receives video, audio, 24V AC/12V DC power, and data with one UTP cable
    • Providing 24V AC or 12V DC for camera
    • Up to 100m / 300ft (24V AC output); up to 300m / 1000ft (12V DC output)
    • Strong Lighting Protection, ESD And anti-interference ability >
    • Delicate design, Support MIT frame, and easy installation
    • RJ45 standard connection installation
