Passive Video Balun with High Performance Ground Loop Isolator
Passive Video Balun with High Performance Ground Loop Isolator



More pictures:


List Price: $40.00
Our Price: $30.00
You save $10.00!

Availability: Usually Ships in 24 Hours
Product Code: UTP-VPIG100L

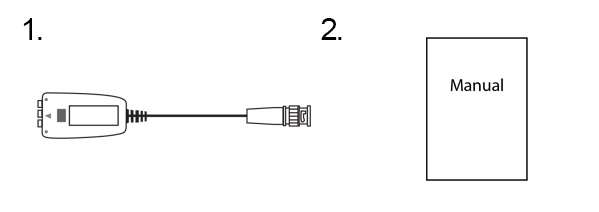

Overview Specifications What's in the Box / Warranty



The video ground loop isolator reduces ground loop interference with CCTV signals. It can be installed easily to a new system or as an additional isolator in an existing system. The isolator is useful where a video signal is transmitted via cable between points with different ground potentials. Differences in ground potentials are typically caused by unbalanced power line loads.

All-in-One:
  1. Passive Video Balun
             +
  2. Ground Loop Isolator Filter
             +
  3. Surge Protector*
*For isolating noise and interference purpose
Features
  • Uses an Unshielded Twisted Pair cable (UTP), like CAT5, to transmit full motion camera video signal up to 300m / 1000ft when working with Passive Balun and max. 600m / 2000ft when working with Active Balun.
  • High Performance isolator filter effectively prevents ground loop video signal distortion
  • Low video loss, Bandwidth: 0~3dB / 0~10MHz
  • Effectively eliminate screen tearing, cross talk and rolling, etc.
  • Real-time transmission of video signals with a clear, high quality video
  • It is useful where a video signal is transmitted via cable between points with different ground potentials
  • Built-in Filter: 0~6MHz with Extra Interference Rejection
  • Built-in Transient Voltage Suppressors (TVS) for surge protection
  • Passive Video Balun Surge Protection 2kV, 10/700µs, Standard: IEC61000-4-5
  • Ground Loop Isolator Surge Protection 4kV, 10/700µs, Standard: IEC61000-4-5
  • Electrostatic Discharge Protection (ESD) Standard: IEC61000-4-2
  • Passive, no power required



UTP Balun Cabling Systems and Solutions provides an answer for all your cabling needs. Our complete line of baluns allows you to easily extend your current audio/video/data system up to 1200ft and even up to 8000ft, with an active balun.

UTP Baluns are perfectly suited for applications such as these:
CCTV Security Systems – Video Balun, CCTV Balun
CCTV Surveillance Systems – Video Balun, CCTV Balun
CCTV Camera – Video Balun, CCTV Balun
Home Theatre – DVI & HDMI Balun
LCD/CRT Monitors – VGA PC Balun, VGA Extender, and VGA Distributor
Televisions – DVI & HDMI
VGA Monitors – CCTV Balun, VGA Balun, VGA PC Balun, VGA Extender, and VGA Distributor
DVD Players – DVI & HDMI Balun
PCs (Personal Computers) – VGA Monitor, Keyboard, & Mouse Long Range CAT5E Extender
Laptops/Notebooks – VGA Monitor, Keyboard, & Mouse Long Range CAT5E Extender
USB and PS/2 Devices – VGA Monitor, Keyboard, & Mouse Long Range CAT5E Extender
UTP (Unshielded Twisted Pair Cable) – Cat5E, Cat6 for Extender Balun
BNC (Coaxial Cable) – Video Signal Filter.
