SD/HD/3G-SDI to HDMI & CVBS Converter - PRO Series
SD/HD/3G-SDI to HDMI & CVBS Converter - PRO Series



More pictures:
List Price: $280.00
Our Price: $210.00
You save $70.00!


Availability: Usually Ships in 24 Hours
Product Code: AAS-HD-SD-HDMI-PRO

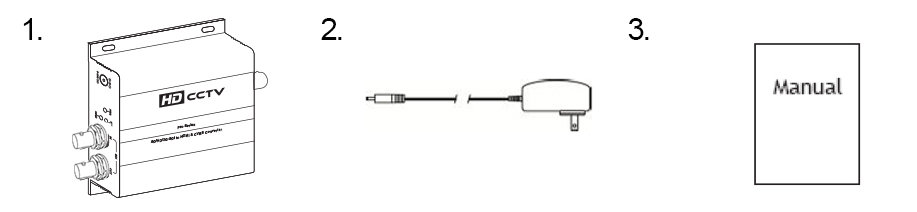

Overview Specifications What's in the Box / Warranty


This device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals and CVBS signals. It integrates SDI Cable equalizer and reclocker to enhance video performance and stability. Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output to analog audio DACs.
Features
  • Support SDI input format: All SDI Formats
         SD: 525i @ 59.94Hz, 625i @ 50Hz
         HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
                 720p @ 50Hz / 59.94Hz / 60Hz
                 1080i @ 50Hz / 59.94Hz / 60Hz
                 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
         3G: 1080p @ 50Hz / 59.94Hz / 60Hz
  • Support SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
  • Carry 1 channel SDI signal loop out.
  • Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI 140m/450ft
  • Automatically embed SDI audio signal to HDMI signal.
  • User selectable output format (HDMI and CVBS)
  • 5V~24V DC
