Long Range VGA, PS2 Keyboard & Mouse Split Extender

More pictures:

List Price: $450.00

Our Price: $337.50

You save $112.50!

Product Code: UTP-VKEPS21000

Overview

Specifications

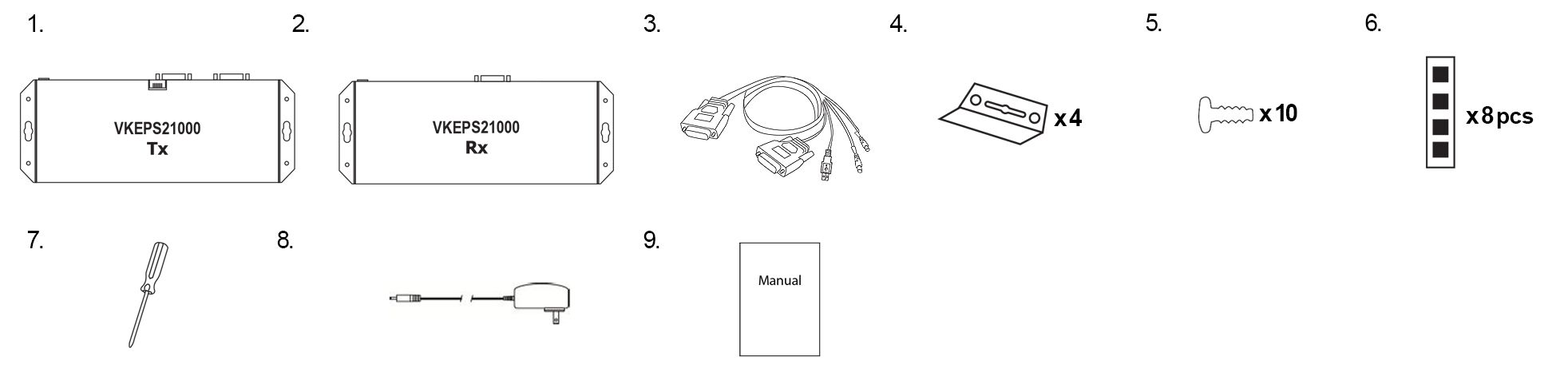

What's in the Box / Warranty

User Manual | View More Info with Application Diagram

Host Unit
Model		UTP-VKEPS21000
Power Properties	Voltage	5V DC
	Power Consumption	＜ 1.5w
	Connectors	USB to DVI
Transmission Properties	Signal Output Connectors	1 × RJ45
	Signal Band	>350MHz (-3dB)
	Transmitting Cable	UTP5/5E
	Resistance	50 Ω
Video Properties	Video Input Connector	HDB to DVI Connector
	Resistance	75 Ω
	Video Output Connectors	15 pin HDB Female
	Resistance	75 Ω
	Synchronous Signal	0-5V,TTL PWL
	Synchronous Signal Band	1K-200KHz
	DDC	Supports DDC2
Keyboard and Mouse Properties	Keyboard Input	PS/2 6 Pin-DIN Female (Green)
	Mouse Input	PS/2 6 Pin-DIN Female (Purple)
	Keyboard Output	PS/2 6 Pin-DIN Female (Green)
	Mouse Output	PS/2 6 Pin-DIN Female (Purple)
Indicators	Video / Data / Power	Green / Yellow / Red
Stability	MTBF	>20,000h
Physical Properties	Dimensions (L × W × H)	160 mm× 90 mm× 32 mm
	Housing Material	Metal
	The Color of Unit	Black
Weight	Net Weight	650g
Environment	Operating Temperature	0 ° C ~70 ° C
	Relative Humidity (non-condensing)	10 ~ 85 %
	Storage Temperature	- 10 ° C ~ 80 ° C
Accessories	Cable	3.3ft / 1.0m, VGA, PS2/KM and USB to DVI Combination Cable

Remote Unit
Model		UTP-VKEPS21000
Power Properties	Voltage	6-14V DC
	Power Consumption	＜ 2.4w
	Connectors	DC Jack
Transmission Properties	Signal Input connectors	1 × RJ45
	Signal Band	>350MHz (-3dB)
	Transient Protection	1kV Common Mode (10/700µs) IEC 61000-4-5
Video Properties	Video Output Connectors	15 pin HDB Female
	Resistance	75 Ω
	Synchronous Signal	0-5V,TTL PWL
	Synchronous Signal Band	1K-200KHz
	DDC	Supports DDC2
Keyboard and Mouse Properties	Keyboard Output	PS/2 6 Pin-DIN Female (Green)
Keyboard and Mouse Properties	Mouse Output	PS/2 6 Pin-DIN Female (Purple)
Indicators	Video / Data / Power	Green / Yellow / Red
Stability	MTBF	>20,000h
Physical Properties	Dimensions (L × W × H)	160 mm× 90 mm× 32 mm
	Housing Material	Metal
	The Color of Unit	Black
Weight	Net Weight	653g
Environment	Operating Temperature	0 ° C ~70 ° C
	Relative Humidity (non-condensing)	10 ~ 85 %
	Storage Temperature	- 10 ° C ~ 80 ° C
Accessories	Power	12V DC, 1A
Packing	Box Size (L × W × H)	295 mm× 150 mm× 205 mm

*Specifications are subject to change without notice.

B-20

C-TICK Certified FCC Certified CE Certified

MADE IN CHINA

Features

Transmission distance of up to 1000ft / 300m.
Transmission via UTP CAT5/5e
Extends VGA video, keyboard and mouse signals
Real-time transmission
Built-in brightness and contrast adjustors
Power through USB in host unit and
12V DC only in remote unit
High video resolution depends on the length and quality of UTP cable
with standard resolution 1024x768 and up to 1600x1200 @ 60Hz.
Exceptional interference rejection
Built-in transient protection
Multiplatform support: supports PC, Mac, Sun, and Linux systems.
Supports VGA, SVGA, XGA, SXGA and Multi-sync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
