| Model Number | UTP-VPB111RJ | | Video Input / Output | BNC | | Surge Protections | Video Output Protection | 2kV (common mode), 10/700µs IEC61000-4-2 | | Video Input Protection | 2kV (different mode), 2kV (common mode) IEC61000-4-2 | | Video Input Protection for Over Current | 100mA | | Video Signal | 1V p-p, 75 Ohms | | Transmission Distance | Video: Color 1000ft / 300m, B/W 1600ft / 500m Power: 200ft / 200m Data: 1000ft / 300m | | Cable | UTP / Twisted Pair CAT5 (24AWG) | | Data Wire | 2 Wire Bare Lead | | Lightning Protection | 1kV (10/700µs) | | Power | No Power Required | | Max Current | 1.5A |
*Specifications are subject to change without notice.
Voltage Drop According to Cable Length (24AWG):Transmission Distance | Transmission Voltage (12V DC, 0.5A) | Transmission Voltage (12V DC, 1A) | Transmission Voltage (12V DC, 1.5A) | 50M / 160Ft | 13.5V | 15.5V | 17.0V | 100M / 320Ft | 15.5V | 18.5V | 22.0V | 150M / 500Ft | 17.0V | 22.0V | 27.0V | 200M / 650Ft | 18.5V | 25.5V | 32.0V |

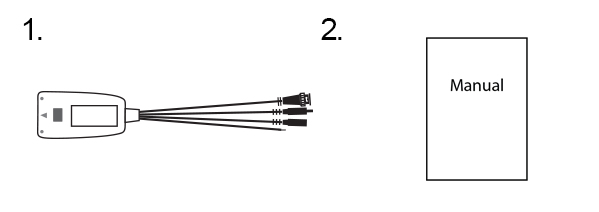

- One (1) Passive Video Balun with Video, Power Connector & Data
- One (1) User Manual
*Manufacturer's One (1) Years Limited Warranty
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Transmit a color video signal up to 1000ft / 300m, and B/W video signal up to 1600ft / 500m.
- Transmit power signal up to 600ft / 200m. (Please see Voltage Drop List).
- Transmit data signal up to 1000ft / 300m.
- BNC male with RJ45 Jack; male and female 12V DC plug on one device.
- Video, camera power, data (RS422, 485) transmission over one standard CAT5 cable.
- Wave Filter Design, Anti-Static Design, Confirm to IEC 61000-4-2 Standard
- Interference Rejection
- ABS Outer Shell
UTP Balun Cabling Systems and Solutions provides an answer for all your cabling needs. Our complete line of baluns allows you to easily extend your current audio/video/data system up to 1200ft and even up to 8000ft, with an active balun.
UTP Baluns are perfectly suited for applications such as these:
CCTV Security Systems – Video Balun, CCTV Balun
CCTV Surveillance Systems – Video Balun, CCTV Balun
CCTV Camera – Video Balun, CCTV Balun
Home Theatre – DVI & HDMI Balun
LCD/CRT Monitors – VGA PC Balun, VGA Extender, and VGA Distributor
Televisions – DVI & HDMI
VGA Monitors – CCTV Balun, VGA Balun, VGA PC Balun, VGA Extender, and VGA Distributor
DVD Players – DVI & HDMI Balun
PCs (Personal Computers) – VGA Monitor, Keyboard, & Mouse Long Range CAT5E Extender
Laptops/Notebooks – VGA Monitor, Keyboard, & Mouse Long Range CAT5E Extender
USB and PS/2 Devices – VGA Monitor, Keyboard, & Mouse Long Range CAT5E Extender
UTP (Unshielded Twisted Pair Cable) – Cat5E, Cat6 for Extender Balun
BNC (Coaxial Cable) – Video Signal Filter. |
|
|
|
|
|
|
